Product Overview

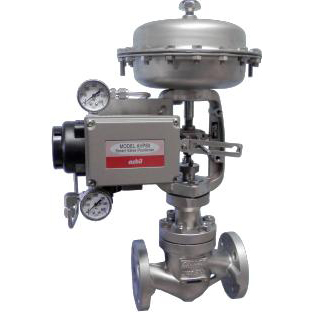

SC2000 pneumatic regulating valve is an automatic control valve driven by compressed air. Select the corresponding actuator to realize the gas opening and gas closing of the valve, and there are a variety of valve trims to choose from to adapt to different working conditions. Process control systems suitable for general media and process conditions.

Product Features

. Easy to assemble-the universal modular design allows it to realize different valve control structures and obtain different operating temperatures by replacing only a few parts.

. Low leakage-the single-seat valve spool leaks very little when the valve is closed, and the soft-seal valve spool can completely shut off the fluid.

. Balanced valve core--The valve core can adopt a sealing ring balance structure to minimize the impact of pressure difference on the unbalanced force of the valve stem, thereby ensuring the pressure difference resistance and control accuracy of the regulating valve.

. Stainless steel actuator-As an important part of the pressure regulating valve, the actuator can be made of stainless steel and has high pressure strength and service life.

. Easy maintenance--The principle of determining each structure of SC2000 regulating valve is to achieve the most convenient installation and maintenance on the premise of ensuring performance indicators.?The overhead press-in installation can carry out internal inspection and maintenance without removing the valve body, and does not require any special tools.

. Adopting the principle of center positioning of the valve cover, all unnecessary repeated cooperation is eliminated. Enough clearance is left in the internal parts so that the internal parts can be easily taken out or put in. Even if the carbon steel valve is corroded after many years of use, it can still be easily disassembled and assembled.

For more information, please click to view sample
